Inlines Quick Reference

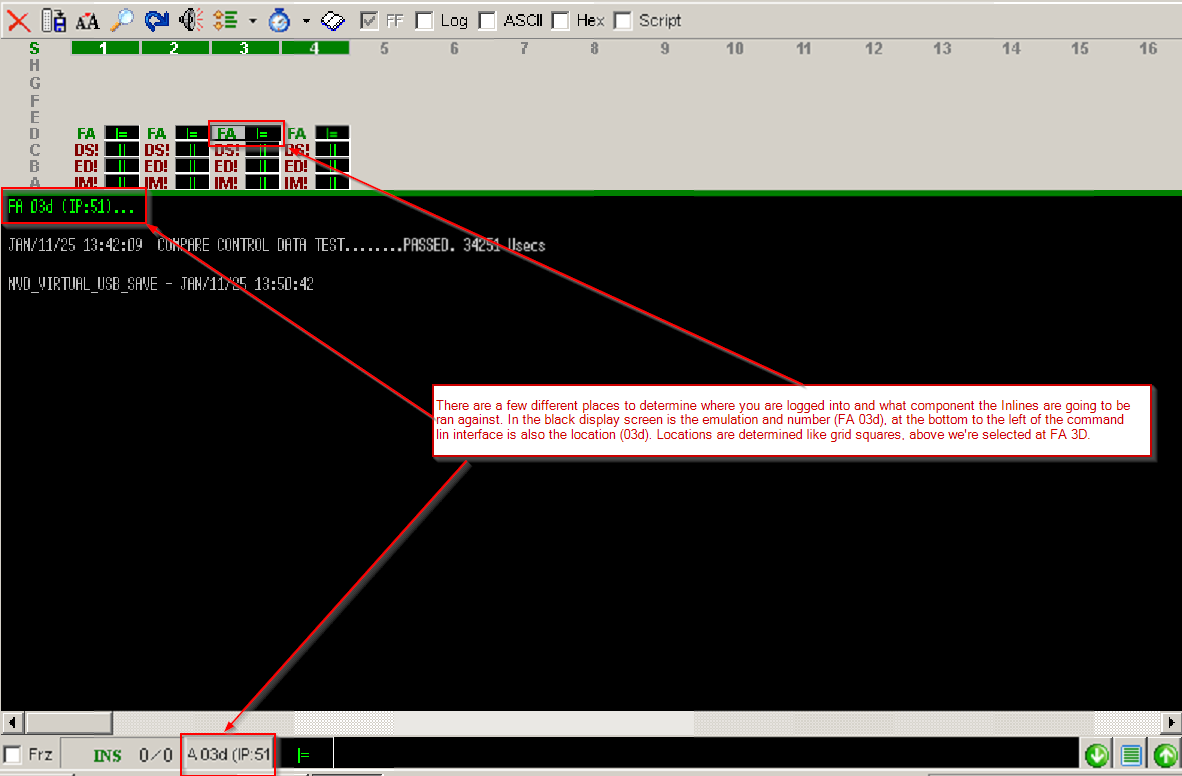

  • Inlines are issued to a specific director or slice
  • Director or slice is chosen by the user, by logging in (selecting it)
    ../../../Work/Images/EMC/VMAX/inline_emulation_login.png
Utility Command Types
Uses
$ Global Provides information about the entire Symmetrix System. Issued from a specific director/slice or emulation, will display or execute on the entire Symmetrix box.
F0 Local Provides information relating to specific director/slice or emulation. Issued on a specific emulation, display and execution will only be local to emulation logged into.
BC Broadcast Issued on a specific director/slice or emulation and is broadcasted to all specific types of emulations. Ex. DA, FA, EF, or SE
Utility Parameters
Short Description
Notes
A7 Displays "interesting devices", like not ready, write disabled, write pending, invalid tracks, or physical consistency
A7 LGND Legend for the A7 utility
A7 D Displays the Symmetrix Logical Volumes and their director locations for all devices Each Logical Volume can have up to 4 mirror positions, or 4 local copies
A7 D5 Displays the Symmetrix Logical Volumes and their director locations for all RAID types
A7 C Device invalid track counts or Physical Consistency (PHCO) tables for all RAID types
E7 [[E7,CFG|CFG]] System configuration
E7 [[E7,D,A|D,A]] Configuration information, DIR emulation config / Running Code / EEPROM
E1 [[E1,Help|HELP]] E1 help utility - E1 - Display current controller status
8D [[8D,HELP|HELP]] 8D help utility - 8D - Display data from memory, or display various information utility
84 [[84,HELP|HELP]] 84 help utility - 84 - Environment Vault Utility
C1 [[C1,HELP|HELP]] C1 help utility - C1 - Symm/K console, sk console utility
9B [[9B,HELP|HELP]] 9B help utility - 9B - Display Events symptom codes utility
98 98 is a test utility - help menu not available
A7 fe,'LIFE' Check NVME wear life on the system
